  1. You're Here >
  2. Vehicle Segments
  3. 2 & 3 Wheelers

2 & 3 WHEELERS

Tap on the product below for its information

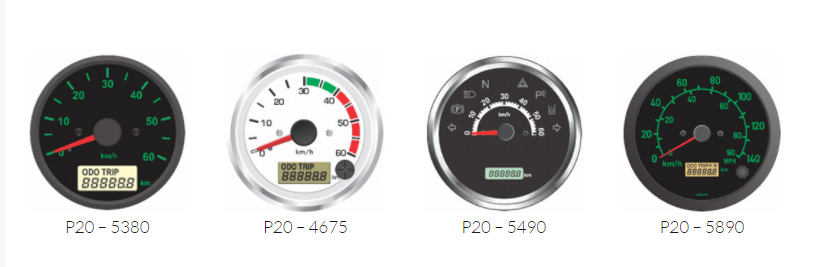

INSTRUMENT CLUSTERS

Pricol is a leading instrument cluster supplier for major OEMs in domestic and export market th a broad spectrum of Display Information Systems. We offer complete range of products suited for entry level requirements to advanced requirements of automotive OEMs. Our instrument clusters features visual information on the vehicle performance, environment, safety and mobility guidance with every interfacing technology needs. The displays are designed with combination of technologies suited to different segments and their aesthetic preferences providing products with best visual ergonomics.

Pricol Advantage

  1. Precision and reliable display devices with proven designs
  2. Customized displays optimized for cost and engineered for performance
  3. Collaborative engineering support
  4. Flexibility for attractive designs, styled to current trends
  5. Ergonomically structured for good viewing and operation
MECHANICAL CLUSTERS

MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Fuel Indication: Cross coil movement driven Pointer
  3. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRO MECHANICAL CLUSTER

ELECTRO MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Cross coil movement driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Cross coil movement driven Pointer
  4. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRONIC CLUSTER

ELECTRONIC CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Stepper motor driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Stepper motor driven Pointer /LCD bar graph
  4. Warning Indications:LED
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
DIGITAL CLUSTER

DIGITAL CLUSTER

  1. Speed Indication: LCD
  2. Tacho Indication: LCD
  3. Fuel/Temperature Indication: LCD Bar Graph
  4. Warning Indications: LED/Graphics on LCD
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. LCD combined with numeric and dot matrix display
TFT CLUSTER

TFT CLUSTER

  1. Speed Indication: Virtual pointer/bar graph/numeric
  2. Tacho Indication: Virtual pointer/bar graph/numeric
  3. Fuel/Temperature Indication: Virtual pointer/bar graph/numeric
  4. Warning Indications: Graphics symbol/text
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. Ambient light sensor
  11. Engine data
  12. Mobile info
  13. Caller details
  14. Turn by turn navigation
  15. Voice alerts
  16. Camera input
  17. Bluetooth module integration

FUEL PUMP MODULE

To meet BS VI / Euro VI emission norms, it is mandatory to use with Electronic Fuel Injection (EFI) system.

EFI system requires Fuel pump module to inject metered amount of fuel into the cylinder for combustion through an injector. This rate of fuel injection is controlled by the ECU

Applications

Two wheelers

FUEL LEVEL SENSORS

FLS HALL POSITION TYPE

FLS HALL POSITION TYPE

  1. Hall IC based technology
  2. Non-contact sensing
  3. Voltage output
  4. Float based
  5. Temperature range: 40° c +110° c
  6. Programmable Type
  7. Customized sensor, as per requirement
  8. Highly Reliable
REED SWITCH TYPE

REED SWITCH TYPE

  1. Non contact sensing with Reed Switch technology
  2. Tubular structure with small coverage area
  3. Level sensing resolution 10 mm
  4. Operating voltage range 5V to 36V
  5. Temperature range -40° C to +110 ° C
  6. Robust electrical design
  7. Insensitive to fuel contamination
  8. Effect of sloshing is negligible
  9. High product endurance (1 million cycles)
  10. Customized sensors as per requirements
THICK FILM RESISTOR TYPE

THICK FILM RESISTOR TYPE

  1. Float based, contact type sensing
  2. Thick Film Resistance technology
  3. Resistive output
  4. Temperature range -40 °C to +110 °C
  5. Customized sensors as per requirements

OXYGEN SENSOR

Exclusive licensing Partnership with Kerdea Technologies

Benefits

  1. Improved emissions and fuel economy
  2. Reduced catalytic converter size
  3. Simple construction with faster response
  4. Better A/F control
  5. Cost effective design
    1. Resistive based technology incorporating modern MEMS processing techniques
    2. Simplified construction eliminating complex multilayer elements and reference cavities
    3. A sensing element requiring significantly smaller amounts of ceramic and platinum

SPEED SENSOR

SPEED SENSORS

SPEED SENSORS

  1. Wheel Speed & Gear Box axle Speed Sensing
  2. Hall effect technology
  3. Compact dimensions
  4. Operates with 0.5mm to 2mm sensing gap
  5. Operating voltage range 5V to 32V
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

TEMPERATURE SENSORS & SWITCHES

PRESSURE SENSOR

  1. Diaphragm, plunger & bobbin winding
  2. Resistive output
  3. Pressure sensing range 0.1 bar to 10 bar
  4. Operating temperature range -30 °C to +100 °C
  5. Integrated pressure switch is optional
  6. Customized sensors as per requirements

PRESSURE SWITCH

  1. Diaphragm technology
  2. Normally open type switch
  3. Pressure switching point range 0.4 bar to 5.4 bar
  4. Operating temperature range -40 °C to +125 °C
  5. Customized switch points as per requirements
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

AUTO DECOMPRESSION UNIT

The purpose of Decompression Unit is to relieve the exhaust gases from engine during the starting process. It is used to keep the exhaust valve in partially open position to relieve the gases present in the combustion chamber.

Applications - Two wheelers and all terrain vehicles

CHAIN TENSIONERS

A Cam Chain tensioner is a mechanical device that applies load that ranges from 4N to 30N to maintain cam chain tension.

  1. Rack: Movement of Plunger in steps
  2. Screw & Torsion Spring: Movement of Plunger is continuous
  3. Screw & Flat Spiral Spring: Compact and movement of Plunger is continuous

Applications

Two wheelers

OIL PUMPS

The function of Oil Pump is to supply pressurised oil to the engine for lubrication and to make the engine perform to the desired levels of emission norms. This also assists in cooling the engine.

Types

  1. Gerotor type
  2. Chain Driven / Crankshaft Driven
  3. Inbuilt Pressure Relief Valve (Optional)
  4. Variable Flow Oil Pump (VFOP)

Applications

Two wheelers, Three wheelers, quadricyles, Passenger cars, commercial vehicles, all terrain vehicles, Snow Mobiles and Industrial applications

WATER PUMPS

Majorly, Water Pumps are centrifugal type pumps used to circulate coolant to cool the engine. The key parts of water pump are impeller, mechanical seal and integral shaft bearing.

Applications

Two wheelers, quadricycles, passenger cars, commercial vehicles ,tractors, off road equipment and industrial applications

BODY CONTROL MODULE

BCM provide safety, diagnostics & fault detection, power management and comfort. BCM communicates to other ECU’s (Through CAN J1939) in vehicle to bring in intelligence to electrical loads, which will ensure safety, minimize power consumption and endurance to loads.

Pricol can design BCM as per OEM specific requirements and adapt to vehicle specific electrical architecture in the vehicle.

TELEMATICS COMPETENCY

Pricol offers best-in-class, OEM Quality telematics solutions in various segments of vehicle telematics and industrial IOT solutions.

Our solutions to OEMs have been recognized for solving critical business challenges through our optimized design, Quality, cost and services. Our after-market solutions have been unique with high value propositions at competitive costs.

OBD II

Pricol's OBD II telematics product is self-installation device, measuring just 69 X 52 X 23 (in mm) plugs into OBD II port send out all installation specific details to platform. It has self-learning 3D axis accelerometer algorithms understands the orientation to give precise driver behavior data irrespective of orientation. Device can read upto 73 OBD II DTC's which will help in remote diagnostics. Edge analytics on driver behavior patterns, Mere accident alert, ODO meter matched with vehicle ODO, Alert on device removal, all parameters are configurable through OTA commands are some of the features of pricol’s OBD II telematics Device.

Applications

  1. Insurance
  2. Pay as you drive, Pay how you drive, UBI, Accident Claims, Mere crash response.
  3. Auto Finance
  4. Safety of vehicle, Mere crash alerts, Embedded Geo-Fence (Circular), Device removal alert.
  5. Rental cars
  6. Efficient fleet management, Remote vehicle diagnostics.
  7. Leased vehicles
  8. Safety of vehicles, Accurate vehicle ODO matching, Improve compliance

Technical Specification

  1. OBD Interface: CAN port and K-Line
    1. CAN compliant: ISO 15765-4, ISO 15765-2.
    2. K-LINE: ISO 9142-2 ,ISO 14230-1/2, ISO 14230-2, ISO 14230-4, J1939
  2. Vehicle DTC parameters (Up to 73 parameters)
  3. Vehicle ODO matching
  4. Driver behavior model build into device
    1. High acceleration
    2. Harsh breaking
    3. Over speed
    4. Cornering
    5. Mere Crash detection– 2g and 4g
    6. Idle time (Short and Long)

INTELLIGENT TRANSPORTATION SYSTEMS

Meets AIS 140 regulation and has several additional features which make OEMs to integrate across platforms. Additional interfaces will enable to integrate 3rd part accessories like RF ID readers, Fuel level sensors, etc. Additional IP addressing will enable vehicle data available for OEM's for their own applications. Platform can be easily upgraded to 4G CAT M1

  1. Applications
  2. Fleet management, Remote diagnostics
  1. Technical Specification
    1. Platform which can be upgraded to 4G (CAT M1)
    2. Operating Temperature : -40ºC to +85ºC.
    3. Operating Voltage : 9V to 32V
    4. Protection : IP-69
    5. Size: 120 x 100 x 35 mm
    6. 2200mAH Internal Battery (Max. 8 Hrs.)
    7. 2 CAN, 4 Digital Inputs (Configurable for Active high / low),
    8. 2 Analog Inputs, 1 Frequency Input, 2 Output
    9. Embedded Accelerometer and Gyroscope
    10. Three IP addressing
    11. Bluetooth 4.0
    12. RS485 | RS232 | 2nd CAN for any third party product integration
  1. You're Here >
  2. Vehicle Segments
  3. Cars & Vans

CARS & VANS

Tap on the product below for its information

INSTRUMENT CLUSTERS

Pricol is a leading instrument cluster supplier for major OEMs in domestic and export market th a broad spectrum of Display Information Systems. We offer complete range of products suited for entry level requirements to advanced requirements of automotive OEMs. Our instrument clusters features visual information on the vehicle performance, environment, safety and mobility guidance with every interfacing technology needs. The displays are designed with combination of technologies suited to different segments and their aesthetic preferences providing products with best visual ergonomics.

Pricol Advantage

  1. Precision and reliable display devices with proven designs
  2. Customized displays optimized for cost and engineered for performance
  3. Collaborative engineering support
  4. Flexibility for attractive designs, styled to current trends
  5. Ergonomically structured for good viewing and operation
MECHANICAL CLUSTERS

MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Fuel Indication: Cross coil movement driven Pointer
  3. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRO MECHANICAL CLUSTER

ELECTRO MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Cross coil movement driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Cross coil movement driven Pointer
  4. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRONIC CLUSTER

ELECTRONIC CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Stepper motor driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Stepper motor driven Pointer /LCD bar graph
  4. Warning Indications:LED
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
DIGITAL CLUSTER

DIGITAL CLUSTER

  1. Speed Indication: LCD
  2. Tacho Indication: LCD
  3. Fuel/Temperature Indication: LCD Bar Graph
  4. Warning Indications: LED/Graphics on LCD
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. LCD combined with numeric and dot matrix display
TFT CLUSTER

TFT CLUSTER

  1. Speed Indication: Virtual pointer/bar graph/numeric
  2. Tacho Indication: Virtual pointer/bar graph/numeric
  3. Fuel/Temperature Indication: Virtual pointer/bar graph/numeric
  4. Warning Indications: Graphics symbol/text
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. Ambient light sensor
  11. Engine data
  12. Mobile info
  13. Caller details
  14. Turn by turn navigation
  15. Voice alerts
  16. Camera input
  17. Bluetooth module integration

FUEL PUMP MODULE

To meet BS VI / Euro VI emission norms, it is mandatory to use with Electronic Fuel Injection (EFI) system.

EFI system requires Fuel pump module to inject metered amount of fuel into the cylinder for combustion through an injector. This rate of fuel injection is controlled by the ECU

Applications

Two wheelers

PARK ASSIST SYSTEMS

SENSORS - PASSENGER VEHICLES

  1. Compliance to mandatory regulation of Automotive Industry Standard AIS-145/DF1 (0-60-100cm) or higher
  2. 4 / 2 sensors - Rear & Front application based on vehicle width & mounting conditions
    3. >
  3. Self diagnostic check on start & Low response time of 0.2 secs
  4. Buzzer with 70 to 90db with or without LED, Left / Right zone indication
  5. Easy sensor installation into Plastics or Metal bumpers
  6. Robust electrical design integrated with protection circuits
  7. 7 segment LED for actual distance to obstacle etc.
  8. Customization available with LIN ECU outputs, integration to Instrument clusters and other vehicle modules
  9. Learning capability to ignore vehicle mounted parts
  10. Auto mute function for vehicle towing

SENSORS - COMMERCIAL VEHICLES

  1. Compliance to mandatory regulation of Automotive Industry Standard AIS-145/DF1 (0-70-180cm) or higher
  2. 4 sensors with rubber surface mounts / lock nuts for vehicle mounting
  3. Self diagnostic check on start & Low response time of 0.4 secs
  4. Buzzer with 70 to 90db with or without LED, Left / Right zone indication
  5. Robust electrical design integrated with protection circuits
  6. All external components are IP68 water proof rated
  7. Optional 7 segment LED for actual distance to obstacle etc
  8. Customization available with LIN outputs, integration to Instrument clusters and other vehicle modules
  9. Learning capability to ignore vehicle mounted parts
  10. Auto mute function for vehicle towing

ON SCREEN DISPLAY WITH GRAPHICAL OVERLAY

PASSENGER & COMMERCIAL VEHICLES

  1. Compliance to mandatory regulation of Automotive Industry Standard AIS-145/DF1
  2. Monitoring range of 0-60-100cm for passenger vehicles and 0-70-100cm for commercial vehicles (or) Higher
  3. Self diagnostic check on start & Low response time of 0.5 secs
  4. High resolution switchable overlay display of sensor systems detection patterns
  5. Designed to accept any NTSC camera signals and overlay sensor data in the range of advanced interfaces
  6. Robust electrical design integrated with protection circuits
  7. All external components are IP68 water proof rated
  8. Customization available with LIN outputs, integration to Instrument clusters and other vehicle modules

CAMERAS - PASSENGER VEHICLES

  1. Compact designs with waterproof IP68 rated
  2. 160 degree high quality lens and High resolution digital imager
  3. Very good low light capability for Rear & Front applications
  4. Adjustable mounting systems & fits any vehicles
  5. Available for bumper mounting, Name plates, Back visor etc

CAMERAS - COMMERCIAL VEHICLES

  1. Heavy duty metal housing with adjustable sun shield
  2. Sony Super HAD CCD image sensor
  3. Infrared Night vision capable with photo sensing automatic control
  4. Screw lock water proof connectors
  5. Plug ’n’ Play with any monitors

MULTI-VIEW CAMERAS

PASSENGER & COMMERCIAL VEHICLES

  1. Front & Rear installation
  2. 3 viewing angles with dash mounted control and on screen guideline options
  3. Heavy duty metal housing and IP68 water proof rated
  4. Megapixel imager for Crystal clear images
  5. Auto calibration and adjusts to mounting heigh
    6. t
  6. Designed for low light conditions

WIRELESS CAMERA SYSTEMS

  1. Wireless range over 200m and Zero Static
  2. Digital High resolution LCD monitor
  3. Heavy duty metal housing with adjustable sun shield
  4. Sony Super HAD CCD image sensor
  5. Infrared Night vision capable with photo sensing automatic control
  6. All external components are IP68 water proof rated

DISPLAYS

  1. 4” LCD Mirror display with 3.6” High resolution LCD screen / Standard Display with 4.0” High resolution LCD screen
  2. Provided with standard arm or swappable arm
  3. Automatic reverse activation
  4. Full contrast / brightness / color adjustments

TECHNOLOGY ROADMAP

WIPING SYSTEMS

FRONT WIPER MOTORS

Front Wiper Motors – 12V & 24 V

  1. Motor Torque Range – 18 Nm to 52 Nm
  2. Wipe Angle Range – 70 to 110
  3. Life – Minimum 1 million cycles
  4. Over Load Protection
  5. High Corrosion Resistance
  6. EMI / EMC protection
  7. Water Tightness IP6K7

Features

  1. Modular Systems
  2. Compact Design
  3. Integrated Connector
  4. LHD and RHD Versions
  5. IP6K7
  6. Integrated EMI/EMC Filter
  7. In-house testing and validation
  8. Catering to Passenger Vehicles, Light Commercial
  9. Vehicles and Commercial Vehicles segments

Wipe Pattern

  1. Tandem
  2. Pantograph
  3. Master Sleeve
  4. Single Arm

Types of Wiping Linkages

  1. Module Type
  2. Separate

REAR WIPER MOTORS

Features

  1. Motors Torque Range : 5 Mn
  2. Angle of Wipe : 90 to 180
  3. Life : Minimum 0.5 million cycles
  4. EMI/EMC protection
  5. 35 swings per minute

COMPACT FRONT WIPER MOTORS

Features

  1. Stall torque 32Nm
  2. Compact size
  3. Integrated connector
  4. LHD and RHD versions
  5. Weight
    1. 990g (motor)
    2. 2198g (motor+linkage)

HEAVY DUTY WIPERS

Features

  1. Modular system
  2. 12V or 24V
  3. Stall torque 25Nm
  4. IP 54
  5. Integrated thermal cut out
  6. Integrated EMI filter
  7. Wiping angle 65°-105°
  8. Durability 20,00,000 cycles

  9. Options

    1. Two output shafts

NEW CONCEPT REAR WIPER MOTORS

Features

  1. Stall torque 5Nm
  2. Stator diameter 42x31
  3. Watertight connector
  4. Watertight electronics compartment
  5. Weight 770g

FUEL LEVEL SENSORS

FLS HALL POSITION TYPE

FLS HALL POSITION TYPE

  1. Hall IC based technology
  2. Non-contact sensing
  3. Voltage output
  4. Float based
  5. Temperature range: 40° c +110° c
  6. Programmable Type
  7. Customized sensor, as per requirement
  8. Highly Reliable
REED SWITCH TYPE

REED SWITCH TYPE

  1. Non contact sensing with Reed Switch technology
  2. Tubular structure with small coverage area
  3. Level sensing resolution 10 mm
  4. Operating voltage range 5V to 36V
  5. Temperature range -40° C to +110 ° C
  6. Robust electrical design
  7. Insensitive to fuel contamination
  8. Effect of sloshing is negligible
  9. High product endurance (1 million cycles)
  10. Customized sensors as per requirements
THICK FILM RESISTOR TYPE

THICK FILM RESISTOR TYPE

  1. Float based, contact type sensing
  2. Thick Film Resistance technology
  3. Resistive output
  4. Temperature range -40 °C to +110 °C
  5. Customized sensors as per requirements

TEMPERATURE SENSORS & SWITCHES

PRESSURE SENSOR

  1. Diaphragm, plunger & bobbin winding
  2. Resistive output
  3. Pressure sensing range 0.1 bar to 10 bar
  4. Operating temperature range -30 °C to +100 °C
  5. Integrated pressure switch is optional
  6. Customized sensors as per requirements

PRESSURE SWITCH

  1. Diaphragm technology
  2. Normally open type switch
  3. Pressure switching point range 0.4 bar to 5.4 bar
  4. Operating temperature range -40 °C to +125 °C
  5. Customized switch points as per requirements
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

SPEED SENSOR

SPEED SENSORS

SPEED SENSORS

  1. Wheel Speed & Gear Box axle Speed Sensing
  2. Hall effect technology
  3. Compact dimensions
  4. Operates with 0.5mm to 2mm sensing gap
  5. Operating voltage range 5V to 32V
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

WATER PUMPS

Majorly, Water Pumps are centrifugal type pumps used to circulate coolant to cool the engine. The key parts of water pump are impeller, mechanical seal and integral shaft bearing.

Applications

Two wheelers, quadricycles, passenger cars, commercial vehicles ,tractors, off road equipment and industrial applications

OIL PUMPS

The function of Oil Pump is to supply pressurised oil to the engine for lubrication and to make the engine perform to the desired levels of emission norms. This also assists in cooling the engine.

Types

  1. Gerotor type
  2. Chain Driven / Crankshaft Driven
  3. Inbuilt Pressure Relief Valve (Optional)
  4. Variable Flow Oil Pump (VFOP)

Applications

Two wheelers, Three wheelers, quadricyles, Passenger cars, commercial vehicles, all terrain vehicles, Snow Mobiles and Industrial applications

BODY CONTROL MODULE

BCM provide safety, diagnostics & fault detection, power management and comfort. BCM communicates to other ECU’s (Through CAN J1939) in vehicle to bring in intelligence to electrical loads, which will ensure safety, minimize power consumption and endurance to loads.

Pricol can design BCM as per OEM specific requirements and adapt to vehicle specific electrical architecture in the vehicle.

TELEMATICS COMPETENCY

Pricol offers best-in-class, OEM Quality telematics solutions in various segments of vehicle telematics and industrial IOT solutions.

Our solutions to OEMs have been recognized for solving critical business challenges through our optimized design, Quality, cost and services. Our after-market solutions have been unique with high value propositions at competitive costs.

OBD II

Pricol's OBD II telematics product is self-installation device, measuring just 69 X 52 X 23 (in mm) plugs into OBD II port send out all installation specific details to platform. It has self-learning 3D axis accelerometer algorithms understands the orientation to give precise driver behavior data irrespective of orientation. Device can read upto 73 OBD II DTC's which will help in remote diagnostics. Edge analytics on driver behavior patterns, Mere accident alert, ODO meter matched with vehicle ODO, Alert on device removal, all parameters are configurable through OTA commands are some of the features of pricol’s OBD II telematics Device.

Applications

  1. Insurance
  2. Pay as you drive, Pay how you drive, UBI, Accident Claims, Mere crash response.
  3. Auto Finance
  4. Safety of vehicle, Mere crash alerts, Embedded Geo-Fence (Circular), Device removal alert.
  5. Rental cars
  6. Efficient fleet management, Remote vehicle diagnostics.
  7. Leased vehicles
  8. Safety of vehicles, Accurate vehicle ODO matching, Improve compliance

Technical Specification

  1. OBD Interface: CAN port and K-Line
    1. CAN compliant: ISO 15765-4, ISO 15765-2.
    2. K-LINE: ISO 9142-2 ,ISO 14230-1/2, ISO 14230-2, ISO 14230-4, J1939
  2. Vehicle DTC parameters (Up to 73 parameters)
  3. Vehicle ODO matching
  4. Driver behavior model build into device
    1. High acceleration
    2. Harsh breaking
    3. Over speed
    4. Cornering
    5. Mere Crash detection– 2g and 4g
    6. Idle time (Short and Long)
  1. You're Here >
  2. Vehicle Segments
  3. Tractors & Off-Road Vehicles

TRACTORS

Tap on the product below for its information

INSTRUMENT CLUSTERS

Pricol is a leading instrument cluster supplier for major OEMs in domestic and export market th a broad spectrum of Display Information Systems. We offer complete range of products suited for entry level requirements to advanced requirements of automotive OEMs. Our instrument clusters features visual information on the vehicle performance, environment, safety and mobility guidance with every interfacing technology needs. The displays are designed with combination of technologies suited to different segments and their aesthetic preferences providing products with best visual ergonomics.

Pricol Advantage

  1. Precision and reliable display devices with proven designs
  2. Customized displays optimized for cost and engineered for performance
  3. Collaborative engineering support
  4. Flexibility for attractive designs, styled to current trends
  5. Ergonomically structured for good viewing and operation
MECHANICAL CLUSTERS

MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Fuel Indication: Cross coil movement driven Pointer
  3. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRO MECHANICAL CLUSTER

ELECTRO MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Cross coil movement driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Cross coil movement driven Pointer
  4. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRONIC CLUSTER

ELECTRONIC CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Stepper motor driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Stepper motor driven Pointer /LCD bar graph
  4. Warning Indications:LED
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
DIGITAL CLUSTER

DIGITAL CLUSTER

  1. Speed Indication: LCD
  2. Tacho Indication: LCD
  3. Fuel/Temperature Indication: LCD Bar Graph
  4. Warning Indications: LED/Graphics on LCD
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. LCD combined with numeric and dot matrix display
TFT CLUSTER

TFT CLUSTER

  1. Speed Indication: Virtual pointer/bar graph/numeric
  2. Tacho Indication: Virtual pointer/bar graph/numeric
  3. Fuel/Temperature Indication: Virtual pointer/bar graph/numeric
  4. Warning Indications: Graphics symbol/text
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. Ambient light sensor
  11. Engine data
  12. Mobile info
  13. Caller details
  14. Turn by turn navigation
  15. Voice alerts
  16. Camera input
  17. Bluetooth module integration

FUEL LEVEL SENSORS

FLS HALL POSITION TYPE

FLS HALL POSITION TYPE

  1. Hall IC based technology
  2. Non-contact sensing
  3. Voltage output
  4. Float based
  5. Temperature range: 40° c +110° c
  6. Programmable Type
  7. Customized sensor, as per requirement
  8. Highly Reliable
REED SWITCH TYPE

REED SWITCH TYPE

  1. Non contact sensing with Reed Switch technology
  2. Tubular structure with small coverage area
  3. Level sensing resolution 10 mm
  4. Operating voltage range 5V to 36V
  5. Temperature range -40° C to +110 ° C
  6. Robust electrical design
  7. Insensitive to fuel contamination
  8. Effect of sloshing is negligible
  9. High product endurance (1 million cycles)
  10. Customized sensors as per requirements
THICK FILM RESISTOR TYPE

THICK FILM RESISTOR TYPE

  1. Float based, contact type sensing
  2. Thick Film Resistance technology
  3. Resistive output
  4. Temperature range -40 °C to +110 °C
  5. Customized sensors as per requirements

TEMPERATURE SENSORS

Temperature Sensor

  1. NTC Thermistor technology
  2. Temperature range -40° C to + 200 ° C
  3. Resistive output
  4. Customized sensors as per requirements

ENGINE SPEED SENSOR

SPEED SENSORS

SPEED SENSORS

  1. Wheel Speed & Gear Box axle Speed Sensing
  2. Hall effect technology
  3. Compact dimensions
  4. Operates with 0.5mm to 2mm sensing gap
  5. Operating voltage range 5V to 32V
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

WATER PUMPS

Majorly, Water Pumps are centrifugal type pumps used to circulate coolant to cool the engine. The key parts of water pump are impeller, mechanical seal and integral shaft bearing.

Applications

Two wheelers, quadricycles, passenger cars, commercial vehicles ,tractors, off road equipment and industrial applications

OIL PUMPS

The function of Oil Pump is to supply pressurised oil to the engine for lubrication and to make the engine perform to the desired levels of emission norms. This also assists in cooling the engine.

Types

  1. Gerotor type
  2. Chain Driven / Crankshaft Driven
  3. Inbuilt Pressure Relief Valve (Optional)
  4. Variable Flow Oil Pump (VFOP)

Applications

Two wheelers, Three wheelers, quadricyles, Passenger cars, commercial vehicles, all terrain vehicles, Snow Mobiles and Industrial applications

BODY CONTROL MODULE

BCM provide safety, diagnostics & fault detection, power management and comfort. BCM communicates to other ECU’s (Through CAN J1939) in vehicle to bring in intelligence to electrical loads, which will ensure safety, minimize power consumption and endurance to loads.

Pricol can design BCM as per OEM specific requirements and adapt to vehicle specific electrical architecture in the vehicle.

TELEMATICS COMPETENCY

Pricol offers best-in-class, OEM Quality telematics solutions in various segments of vehicle telematics and industrial IOT solutions.

Our solutions to OEMs have been recognized for solving critical business challenges through our optimized design, Quality, cost and services. Our after-market solutions have been unique with high value propositions at competitive costs.

OBD II

Pricol's OBD II telematics product is self-installation device, measuring just 69 X 52 X 23 (in mm) plugs into OBD II port send out all installation specific details to platform. It has self-learning 3D axis accelerometer algorithms understands the orientation to give precise driver behavior data irrespective of orientation. Device can read upto 73 OBD II DTC's which will help in remote diagnostics. Edge analytics on driver behavior patterns, Mere accident alert, ODO meter matched with vehicle ODO, Alert on device removal, all parameters are configurable through OTA commands are some of the features of pricol’s OBD II telematics Device.

Applications

  1. Insurance
  2. Pay as you drive, Pay how you drive, UBI, Accident Claims, Mere crash response.
  3. Auto Finance
  4. Safety of vehicle, Mere crash alerts, Embedded Geo-Fence (Circular), Device removal alert.
  5. Rental cars
  6. Efficient fleet management, Remote vehicle diagnostics.
  7. Leased vehicles
  8. Safety of vehicles, Accurate vehicle ODO matching, Improve compliance

Technical Specification

  1. OBD Interface: CAN port and K-Line
    1. CAN compliant: ISO 15765-4, ISO 15765-2.
    2. K-LINE: ISO 9142-2 ,ISO 14230-1/2, ISO 14230-2, ISO 14230-4, J1939
  2. Vehicle DTC parameters (Up to 73 parameters)
  3. Vehicle ODO matching
  4. Driver behavior model build into device
    1. High acceleration
    2. Harsh breaking
    3. Over speed
    4. Cornering
    5. Mere Crash detection– 2g and 4g
    6. Idle time (Short and Long)

INTELLIGENT TRANSPORTATION SYSTEMS

Meets AIS 140 regulation and has several additional features which make OEMs to integrate across platforms. Additional interfaces will enable to integrate 3rd part accessories like RF ID readers, Fuel level sensors, etc. Additional IP addressing will enable vehicle data available for OEM's for their own applications. Platform can be easily upgraded to 4G CAT M1

  1. Applications
  2. Fleet management, Remote diagnostics
  1. Technical Specification
    1. Platform which can be upgraded to 4G (CAT M1)
    2. Operating Temperature : -40ºC to +85ºC.
    3. Operating Voltage : 9V to 32V
    4. Protection : IP-69
    5. Size: 120 x 100 x 35 mm
    6. 2200mAH Internal Battery (Max. 8 Hrs.)
    7. 2 CAN, 4 Digital Inputs (Configurable for Active high / low),
    8. 2 Analog Inputs, 1 Frequency Input, 2 Output
    9. Embedded Accelerometer and Gyroscope
    10. Three IP addressing
    11. Bluetooth 4.0
    12. RS485 | RS232 | 2nd CAN for any third party product integration

WIPING SYSTEMS

FRONT WIPER MOTORS

Front Wiper Motors – 12V & 24 V

  1. Motor Torque Range – 18 Nm to 52 Nm
  2. Wipe Angle Range – 70 to 110
  3. Life – Minimum 1 million cycles
  4. Over Load Protection
  5. High Corrosion Resistance
  6. EMI / EMC protection
  7. Water Tightness IP6K7

Features

  1. Modular Systems
  2. Compact Design
  3. Integrated Connector
  4. LHD and RHD Versions
  5. IP6K7
  6. Integrated EMI/EMC Filter
  7. In-house testing and validation
  8. Catering to Passenger Vehicles, Light Commercial
  9. Vehicles and Commercial Vehicles segments

Wipe Pattern

  1. Tandem
  2. Pantograph
  3. Master Sleeve
  4. Single Arm

Types of Wiping Linkages

  1. Module Type
  2. Separate

REAR WIPER MOTORS

Features

  1. Motors Torque Range : 5 Mn
  2. Angle of Wipe : 90 to 180
  3. Life : Minimum 0.5 million cycles
  4. EMI/EMC protection
  5. 35 swings per minute

COMPACT FRONT WIPER MOTORS

Features

  1. Stall torque 32Nm
  2. Compact size
  3. Integrated connector
  4. LHD and RHD versions
  5. Weight
    1. 990g (motor)
    2. 2198g (motor+linkage)

HEAVY DUTY WIPERS

Features

  1. Modular system
  2. 12V or 24V
  3. Stall torque 25Nm
  4. IP 54
  5. Integrated thermal cut out
  6. Integrated EMI filter
  7. Wiping angle 65°-105°
  8. Durability 20,00,000 cycles

  9. Options

    1. Two output shafts

NEW CONCEPT REAR WIPER MOTORS

Features

  1. Stall torque 5Nm
  2. Stator diameter 42x31
  3. Watertight connector
  4. Watertight electronics compartment
  5. Weight 770g

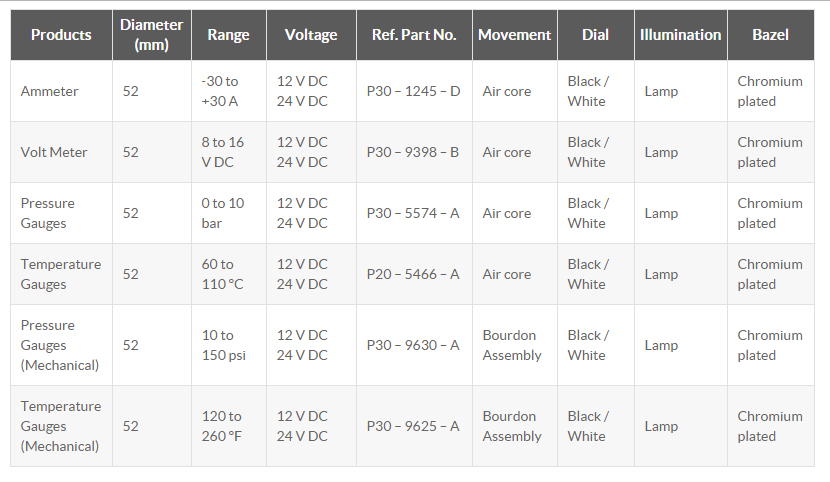

GAUGES

Speedo meter converts the pulses received from a speed sensor to its corresponding speed indication in kilometers per hour and displays the speed on an electronically-controlled, analog-style needle or a digital display. A rotation sensor mounted in the transmission delivers a series of electronic pulses whose frequency corresponds to the(average) rotationalspeed of the drive shaft, and therefore vehicle’s speed, assuming the wheels have full traction. Microcontroller based reliable and compact design, enables the speedometer with precise and accurate indication along with the digital display. The Odo value is non-resettable and the Trip value is resettable by the user. LED illumination provides less heat dissipation with best aesthetics and clear visibility in night condition. Speedometers are applicable in the field of off-road and commercial vehicles. Sketches accounts for the fitment dimensions in the vehicle mounting area.

Speedometer

Marine Meters

Hourly RPM Meters

Gauges

CABIN TILT SYSTEMS

Hydraulic tilt system used in ICV,M & HCV types of commercial vehicles to tilt the driver’s cabin and to enable easy access of under-cabin parts.System comprises of hydraulic pump hydraulic cylinder & latch.

  1. Hydraulic Pump Assembly
    Hand-operated reciprocating Piston type (Single Acting) with in-built Pressure Relief Valve.
  2. Hydraulic Latch Assembly
    A part of Hydraulic cabin tilt system that locks the cabin at rest position and ensures for proper locking of cabin with a feedback switch.
  1. Hydraulic Cylinder Assembly
    Double acting cylinder to provide required lift force
  2. Additional Features
    1. Hydraulic lost motion feature
    2. Integral stay
    3. Free fall feature for mechanical logs
    4. In built NRV (Non return value) for enhanced safety
    5. Mounting ends with spherical bearing and/or plastic bush

AUTOMATED LUBRICATION SYSTEMS

An automatic greasing system driven by a micro-controller based Timer Unit to operate for a requisite ON & OFF intervals to grease Buses, Trucks, Tractors and other off-road vehicles.

Salient Features

  1. Automatic greasing at the right point at right time with right quantity
  2. Wide range of greasing with 8 to 68 points
  3. Enhances life of vehicle & vehicle parts
  4. Reduces operating and maintenance cost
  5. ROI within 15 Months

Application

  1. Mobile applications – Buses & Trucks
  2. Excavators
  3. Front & Back-Hoe loaders
  4. Tractors & other off-road vehicles
  5. Process Industries

  1. You're Here >
  2. Vehicle Segments
  3. Off-Road Vehicles

OFF-ROAD VEHICLES

Tap on the product below for its information

INSTRUMENT CLUSTERS

Pricol is a leading instrument cluster supplier for major OEMs in domestic and export market th a broad spectrum of Display Information Systems. We offer complete range of products suited for entry level requirements to advanced requirements of automotive OEMs. Our instrument clusters features visual information on the vehicle performance, environment, safety and mobility guidance with every interfacing technology needs. The displays are designed with combination of technologies suited to different segments and their aesthetic preferences providing products with best visual ergonomics.

Pricol Advantage

  1. Precision and reliable display devices with proven designs
  2. Customized displays optimized for cost and engineered for performance
  3. Collaborative engineering support
  4. Flexibility for attractive designs, styled to current trends
  5. Ergonomically structured for good viewing and operation
MECHANICAL CLUSTERS

MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Fuel Indication: Cross coil movement driven Pointer
  3. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRO MECHANICAL CLUSTER

ELECTRO MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Cross coil movement driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Cross coil movement driven Pointer
  4. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRONIC CLUSTER

ELECTRONIC CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Stepper motor driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Stepper motor driven Pointer /LCD bar graph
  4. Warning Indications:LED
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
DIGITAL CLUSTER

DIGITAL CLUSTER

  1. Speed Indication: LCD
  2. Tacho Indication: LCD
  3. Fuel/Temperature Indication: LCD Bar Graph
  4. Warning Indications: LED/Graphics on LCD
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. LCD combined with numeric and dot matrix display
TFT CLUSTER

TFT CLUSTER

  1. Speed Indication: Virtual pointer/bar graph/numeric
  2. Tacho Indication: Virtual pointer/bar graph/numeric
  3. Fuel/Temperature Indication: Virtual pointer/bar graph/numeric
  4. Warning Indications: Graphics symbol/text
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. Ambient light sensor
  11. Engine data
  12. Mobile info
  13. Caller details
  14. Turn by turn navigation
  15. Voice alerts
  16. Camera input
  17. Bluetooth module integration

FUEL LEVEL SENSORS

FLS HALL POSITION TYPE

FLS HALL POSITION TYPE

  1. Hall IC based technology
  2. Non-contact sensing
  3. Voltage output
  4. Float based
  5. Temperature range: 40° c +110° c
  6. Programmable Type
  7. Customized sensor, as per requirement
  8. Highly Reliable
REED SWITCH TYPE

REED SWITCH TYPE

  1. Non contact sensing with Reed Switch technology
  2. Tubular structure with small coverage area
  3. Level sensing resolution 10 mm
  4. Operating voltage range 5V to 36V
  5. Temperature range -40° C to +110 ° C
  6. Robust electrical design
  7. Insensitive to fuel contamination
  8. Effect of sloshing is negligible
  9. High product endurance (1 million cycles)
  10. Customized sensors as per requirements
THICK FILM RESISTOR TYPE

THICK FILM RESISTOR TYPE

  1. Float based, contact type sensing
  2. Thick Film Resistance technology
  3. Resistive output
  4. Temperature range -40 °C to +110 °C
  5. Customized sensors as per requirements

TEMPERATURE SENSORS

Temperature Sensor

  1. NTC Thermistor technology
  2. Temperature range -40° C to + 200 ° C
  3. Resistive output
  4. Customized sensors as per requirements

ENGINE SPEED SENSOR

SPEED SENSORS

SPEED SENSORS

  1. Wheel Speed & Gear Box axle Speed Sensing
  2. Hall effect technology
  3. Compact dimensions
  4. Operates with 0.5mm to 2mm sensing gap
  5. Operating voltage range 5V to 32V
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

WATER PUMPS

Majorly, Water Pumps are centrifugal type pumps used to circulate coolant to cool the engine. The key parts of water pump are impeller, mechanical seal and integral shaft bearing.

Applications

Two wheelers, quadricycles, passenger cars, commercial vehicles ,tractors, off road equipment and industrial applications

OIL PUMPS

The function of Oil Pump is to supply pressurised oil to the engine for lubrication and to make the engine perform to the desired levels of emission norms. This also assists in cooling the engine.

Types

  1. Gerotor type
  2. Chain Driven / Crankshaft Driven
  3. Inbuilt Pressure Relief Valve (Optional)
  4. Variable Flow Oil Pump (VFOP)

Applications

Two wheelers, Three wheelers, quadricyles, Passenger cars, commercial vehicles, all terrain vehicles, Snow Mobiles and Industrial applications

BODY CONTROL MODULE

BCM provide safety, diagnostics & fault detection, power management and comfort. BCM communicates to other ECU’s (Through CAN J1939) in vehicle to bring in intelligence to electrical loads, which will ensure safety, minimize power consumption and endurance to loads.

Pricol can design BCM as per OEM specific requirements and adapt to vehicle specific electrical architecture in the vehicle.

TELEMATICS COMPETENCY

Pricol offers best-in-class, OEM Quality telematics solutions in various segments of vehicle telematics and industrial IOT solutions.

Our solutions to OEMs have been recognized for solving critical business challenges through our optimized design, Quality, cost and services. Our after-market solutions have been unique with high value propositions at competitive costs.

OBD II

Pricol's OBD II telematics product is self-installation device, measuring just 69 X 52 X 23 (in mm) plugs into OBD II port send out all installation specific details to platform. It has self-learning 3D axis accelerometer algorithms understands the orientation to give precise driver behavior data irrespective of orientation. Device can read upto 73 OBD II DTC's which will help in remote diagnostics. Edge analytics on driver behavior patterns, Mere accident alert, ODO meter matched with vehicle ODO, Alert on device removal, all parameters are configurable through OTA commands are some of the features of pricol’s OBD II telematics Device.

Applications

  1. Insurance
  2. Pay as you drive, Pay how you drive, UBI, Accident Claims, Mere crash response.
  3. Auto Finance
  4. Safety of vehicle, Mere crash alerts, Embedded Geo-Fence (Circular), Device removal alert.
  5. Rental cars
  6. Efficient fleet management, Remote vehicle diagnostics.
  7. Leased vehicles
  8. Safety of vehicles, Accurate vehicle ODO matching, Improve compliance

Technical Specification

  1. OBD Interface: CAN port and K-Line
    1. CAN compliant: ISO 15765-4, ISO 15765-2.
    2. K-LINE: ISO 9142-2 ,ISO 14230-1/2, ISO 14230-2, ISO 14230-4, J1939
  2. Vehicle DTC parameters (Up to 73 parameters)
  3. Vehicle ODO matching
  4. Driver behavior model build into device
    1. High acceleration
    2. Harsh breaking
    3. Over speed
    4. Cornering
    5. Mere Crash detection– 2g and 4g
    6. Idle time (Short and Long)

INTELLIGENT TRANSPORTATION SYSTEMS

Meets AIS 140 regulation and has several additional features which make OEMs to integrate across platforms. Additional interfaces will enable to integrate 3rd part accessories like RF ID readers, Fuel level sensors, etc. Additional IP addressing will enable vehicle data available for OEM's for their own applications. Platform can be easily upgraded to 4G CAT M1

  1. Applications
  2. Fleet management, Remote diagnostics
  1. Technical Specification
    1. Platform which can be upgraded to 4G (CAT M1)
    2. Operating Temperature : -40ºC to +85ºC.
    3. Operating Voltage : 9V to 32V
    4. Protection : IP-69
    5. Size: 120 x 100 x 35 mm
    6. 2200mAH Internal Battery (Max. 8 Hrs.)
    7. 2 CAN, 4 Digital Inputs (Configurable for Active high / low),
    8. 2 Analog Inputs, 1 Frequency Input, 2 Output
    9. Embedded Accelerometer and Gyroscope
    10. Three IP addressing
    11. Bluetooth 4.0
    12. RS485 | RS232 | 2nd CAN for any third party product integration

WIPING SYSTEMS

FRONT WIPER MOTORS

Front Wiper Motors – 12V & 24 V

  1. Motor Torque Range – 18 Nm to 52 Nm
  2. Wipe Angle Range – 70 to 110
  3. Life – Minimum 1 million cycles
  4. Over Load Protection
  5. High Corrosion Resistance
  6. EMI / EMC protection
  7. Water Tightness IP6K7

Features

  1. Modular Systems
  2. Compact Design
  3. Integrated Connector
  4. LHD and RHD Versions
  5. IP6K7
  6. Integrated EMI/EMC Filter
  7. In-house testing and validation
  8. Catering to Passenger Vehicles, Light Commercial
  9. Vehicles and Commercial Vehicles segments

Wipe Pattern

  1. Tandem
  2. Pantograph
  3. Master Sleeve
  4. Single Arm

Types of Wiping Linkages

  1. Module Type
  2. Separate

REAR WIPER MOTORS

Features

  1. Motors Torque Range : 5 Mn
  2. Angle of Wipe : 90 to 180
  3. Life : Minimum 0.5 million cycles
  4. EMI/EMC protection
  5. 35 swings per minute

COMPACT FRONT WIPER MOTORS

Features

  1. Stall torque 32Nm
  2. Compact size
  3. Integrated connector
  4. LHD and RHD versions
  5. Weight
    1. 990g (motor)
    2. 2198g (motor+linkage)

HEAVY DUTY WIPERS

Features

  1. Modular system
  2. 12V or 24V
  3. Stall torque 25Nm
  4. IP 54
  5. Integrated thermal cut out
  6. Integrated EMI filter
  7. Wiping angle 65°-105°
  8. Durability 20,00,000 cycles

  9. Options

    1. Two output shafts

NEW CONCEPT REAR WIPER MOTORS

Features

  1. Stall torque 5Nm
  2. Stator diameter 42x31
  3. Watertight connector
  4. Watertight electronics compartment
  5. Weight 770g

GAUGES

Speedo meter converts the pulses received from a speed sensor to its corresponding speed indication in kilometers per hour and displays the speed on an electronically-controlled, analog-style needle or a digital display. A rotation sensor mounted in the transmission delivers a series of electronic pulses whose frequency corresponds to the(average) rotationalspeed of the drive shaft, and therefore vehicle’s speed, assuming the wheels have full traction. Microcontroller based reliable and compact design, enables the speedometer with precise and accurate indication along with the digital display. The Odo value is non-resettable and the Trip value is resettable by the user. LED illumination provides less heat dissipation with best aesthetics and clear visibility in night condition. Speedometers are applicable in the field of off-road and commercial vehicles. Sketches accounts for the fitment dimensions in the vehicle mounting area.

Speedometer

Marine Meters

Hourly RPM Meters

Gauges

CABIN TILT SYSTEMS

Hydraulic tilt system used in ICV,M & HCV types of commercial vehicles to tilt the driver’s cabin and to enable easy access of under-cabin parts.System comprises of hydraulic pump hydraulic cylinder & latch.

  1. Hydraulic Pump Assembly
    Hand-operated reciprocating Piston type (Single Acting) with in-built Pressure Relief Valve.
  2. Hydraulic Latch Assembly
    A part of Hydraulic cabin tilt system that locks the cabin at rest position and ensures for proper locking of cabin with a feedback switch.
  1. Hydraulic Cylinder Assembly
    Double acting cylinder to provide required lift force
  2. Additional Features
    1. Hydraulic lost motion feature
    2. Integral stay
    3. Free fall feature for mechanical logs
    4. In built NRV (Non return value) for enhanced safety
    5. Mounting ends with spherical bearing and/or plastic bush

ENGINE SPEED SENSOR

SPEED SENSORS

SPEED SENSORS

  1. Wheel Speed & Gear Box axle Speed Sensing
  2. Hall effect technology
  3. Compact dimensions
  4. Operates with 0.5mm to 2mm sensing gap
  5. Operating voltage range 5V to 32V
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

AUTOMATED LUBRICATION SYSTEMS

An automatic greasing system driven by a micro-controller based Timer Unit to operate for a requisite ON & OFF intervals to grease Buses, Trucks, Tractors and other off-road vehicles.

Salient Features

  1. Automatic greasing at the right point at right time with right quantity
  2. Wide range of greasing with 8 to 68 points
  3. Enhances life of vehicle & vehicle parts
  4. Reduces operating and maintenance cost
  5. ROI within 15 Months

Application

  1. Mobile applications – Buses & Trucks
  2. Excavators
  3. Front & Back-Hoe loaders
  4. Tractors & other off-road vehicles
  5. Process Industries

  1. You're Here >
  2. Vehicle Segments
  3. Commercial Vehicles

COMMERCIAL VEHICLES

Tap on the product below for its information

SPEED LIMITING DEVICE

INSTRUMENT CLUSTERS

Pricol is a leading instrument cluster supplier for major OEMs in domestic and export market th a broad spectrum of Display Information Systems. We offer complete range of products suited for entry level requirements to advanced requirements of automotive OEMs. Our instrument clusters features visual information on the vehicle performance, environment, safety and mobility guidance with every interfacing technology needs. The displays are designed with combination of technologies suited to different segments and their aesthetic preferences providing products with best visual ergonomics.

Pricol Advantage

  1. Precision and reliable display devices with proven designs
  2. Customized displays optimized for cost and engineered for performance
  3. Collaborative engineering support
  4. Flexibility for attractive designs, styled to current trends
  5. Ergonomically structured for good viewing and operation
MECHANICAL CLUSTERS

MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Fuel Indication: Cross coil movement driven Pointer
  3. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRO MECHANICAL CLUSTER

ELECTRO MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Cross coil movement driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Cross coil movement driven Pointer
  4. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRONIC CLUSTER

ELECTRONIC CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Stepper motor driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Stepper motor driven Pointer /LCD bar graph
  4. Warning Indications:LED
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
DIGITAL CLUSTER

DIGITAL CLUSTER

  1. Speed Indication: LCD
  2. Tacho Indication: LCD
  3. Fuel/Temperature Indication: LCD Bar Graph
  4. Warning Indications: LED/Graphics on LCD
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. LCD combined with numeric and dot matrix display
TFT CLUSTER

TFT CLUSTER

  1. Speed Indication: Virtual pointer/bar graph/numeric
  2. Tacho Indication: Virtual pointer/bar graph/numeric
  3. Fuel/Temperature Indication: Virtual pointer/bar graph/numeric
  4. Warning Indications: Graphics symbol/text
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. Ambient light sensor
  11. Engine data
  12. Mobile info
  13. Caller details
  14. Turn by turn navigation
  15. Voice alerts
  16. Camera input
  17. Bluetooth module integration

FUEL LEVEL SENSORS

FLS HALL POSITION TYPE

FLS HALL POSITION TYPE

  1. Hall IC based technology
  2. Non-contact sensing
  3. Voltage output
  4. Float based
  5. Temperature range: 40° c +110° c
  6. Programmable Type
  7. Customized sensor, as per requirement
  8. Highly Reliable
REED SWITCH TYPE

REED SWITCH TYPE

  1. Non contact sensing with Reed Switch technology
  2. Tubular structure with small coverage area
  3. Level sensing resolution 10 mm
  4. Operating voltage range 5V to 36V
  5. Temperature range -40° C to +110 ° C
  6. Robust electrical design
  7. Insensitive to fuel contamination
  8. Effect of sloshing is negligible
  9. High product endurance (1 million cycles)
  10. Customized sensors as per requirements
THICK FILM RESISTOR TYPE

THICK FILM RESISTOR TYPE

  1. Float based, contact type sensing
  2. Thick Film Resistance technology
  3. Resistive output
  4. Temperature range -40 °C to +110 °C
  5. Customized sensors as per requirements

TEMPERATURE SENSORS

Temperature Sensor

  1. NTC Thermistor technology
  2. Temperature range -40° C to + 200 ° C
  3. Resistive output
  4. Customized sensors as per requirements

ENGINE SPEED SENSOR

SPEED SENSORS

SPEED SENSORS

  1. Wheel Speed & Gear Box axle Speed Sensing
  2. Hall effect technology
  3. Compact dimensions
  4. Operates with 0.5mm to 2mm sensing gap
  5. Operating voltage range 5V to 32V
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

WATER PUMPS

Majorly, Water Pumps are centrifugal type pumps used to circulate coolant to cool the engine. The key parts of water pump are impeller, mechanical seal and integral shaft bearing.

Applications

Two wheelers, quadricycles, passenger cars, commercial vehicles ,tractors, off road equipment and industrial applications

OIL PUMPS

The function of Oil Pump is to supply pressurised oil to the engine for lubrication and to make the engine perform to the desired levels of emission norms. This also assists in cooling the engine.

Types

  1. Gerotor type
  2. Chain Driven / Crankshaft Driven
  3. Inbuilt Pressure Relief Valve (Optional)
  4. Variable Flow Oil Pump (VFOP)

Applications

Two wheelers, Three wheelers, quadricyles, Passenger cars, commercial vehicles, all terrain vehicles, Snow Mobiles and Industrial applications

BODY CONTROL MODULE

BCM provide safety, diagnostics & fault detection, power management and comfort. BCM communicates to other ECU’s (Through CAN J1939) in vehicle to bring in intelligence to electrical loads, which will ensure safety, minimize power consumption and endurance to loads.

Pricol can design BCM as per OEM specific requirements and adapt to vehicle specific electrical architecture in the vehicle.

TELEMATICS COMPETENCY

Pricol offers best-in-class, OEM Quality telematics solutions in various segments of vehicle telematics and industrial IOT solutions.

Our solutions to OEMs have been recognized for solving critical business challenges through our optimized design, Quality, cost and services. Our after-market solutions have been unique with high value propositions at competitive costs.

OBD II

Pricol's OBD II telematics product is self-installation device, measuring just 69 X 52 X 23 (in mm) plugs into OBD II port send out all installation specific details to platform. It has self-learning 3D axis accelerometer algorithms understands the orientation to give precise driver behavior data irrespective of orientation. Device can read upto 73 OBD II DTC's which will help in remote diagnostics. Edge analytics on driver behavior patterns, Mere accident alert, ODO meter matched with vehicle ODO, Alert on device removal, all parameters are configurable through OTA commands are some of the features of pricol’s OBD II telematics Device.

Applications

  1. Insurance
  2. Pay as you drive, Pay how you drive, UBI, Accident Claims, Mere crash response.
  3. Auto Finance
  4. Safety of vehicle, Mere crash alerts, Embedded Geo-Fence (Circular), Device removal alert.
  5. Rental cars
  6. Efficient fleet management, Remote vehicle diagnostics.
  7. Leased vehicles
  8. Safety of vehicles, Accurate vehicle ODO matching, Improve compliance

Technical Specification

  1. OBD Interface: CAN port and K-Line
    1. CAN compliant: ISO 15765-4, ISO 15765-2.
    2. K-LINE: ISO 9142-2 ,ISO 14230-1/2, ISO 14230-2, ISO 14230-4, J1939
  2. Vehicle DTC parameters (Up to 73 parameters)
  3. Vehicle ODO matching
  4. Driver behavior model build into device
    1. High acceleration
    2. Harsh breaking
    3. Over speed
    4. Cornering
    5. Mere Crash detection– 2g and 4g
    6. Idle time (Short and Long)

INTELLIGENT TRANSPORTATION SYSTEMS

Meets AIS 140 regulation and has several additional features which make OEMs to integrate across platforms. Additional interfaces will enable to integrate 3rd part accessories like RF ID readers, Fuel level sensors, etc. Additional IP addressing will enable vehicle data available for OEM's for their own applications. Platform can be easily upgraded to 4G CAT M1

  1. Applications
  2. Fleet management, Remote diagnostics
  1. Technical Specification
    1. Platform which can be upgraded to 4G (CAT M1)
    2. Operating Temperature : -40ºC to +85ºC.
    3. Operating Voltage : 9V to 32V
    4. Protection : IP-69
    5. Size: 120 x 100 x 35 mm
    6. 2200mAH Internal Battery (Max. 8 Hrs.)
    7. 2 CAN, 4 Digital Inputs (Configurable for Active high / low),
    8. 2 Analog Inputs, 1 Frequency Input, 2 Output
    9. Embedded Accelerometer and Gyroscope
    10. Three IP addressing
    11. Bluetooth 4.0
    12. RS485 | RS232 | 2nd CAN for any third party product integration

WIPING SYSTEMS

FRONT WIPER MOTORS

Front Wiper Motors – 12V & 24 V

  1. Motor Torque Range – 18 Nm to 52 Nm
  2. Wipe Angle Range – 70 to 110
  3. Life – Minimum 1 million cycles
  4. Over Load Protection
  5. High Corrosion Resistance
  6. EMI / EMC protection
  7. Water Tightness IP6K7

Features

  1. Modular Systems
  2. Compact Design
  3. Integrated Connector
  4. LHD and RHD Versions
  5. IP6K7
  6. Integrated EMI/EMC Filter
  7. In-house testing and validation
  8. Catering to Passenger Vehicles, Light Commercial
  9. Vehicles and Commercial Vehicles segments

Wipe Pattern

  1. Tandem
  2. Pantograph
  3. Master Sleeve
  4. Single Arm

Types of Wiping Linkages

  1. Module Type
  2. Separate

REAR WIPER MOTORS

Features

  1. Motors Torque Range : 5 Mn
  2. Angle of Wipe : 90 to 180
  3. Life : Minimum 0.5 million cycles
  4. EMI/EMC protection
  5. 35 swings per minute

COMPACT FRONT WIPER MOTORS

Features

  1. Stall torque 32Nm
  2. Compact size
  3. Integrated connector
  4. LHD and RHD versions
  5. Weight
    1. 990g (motor)
    2. 2198g (motor+linkage)

HEAVY DUTY WIPERS

Features

  1. Modular system
  2. 12V or 24V
  3. Stall torque 25Nm
  4. IP 54
  5. Integrated thermal cut out
  6. Integrated EMI filter
  7. Wiping angle 65°-105°
  8. Durability 20,00,000 cycles

  9. Options

    1. Two output shafts

NEW CONCEPT REAR WIPER MOTORS

Features

  1. Stall torque 5Nm
  2. Stator diameter 42x31
  3. Watertight connector
  4. Watertight electronics compartment
  5. Weight 770g

GAUGES

Speedo meter converts the pulses received from a speed sensor to its corresponding speed indication in kilometers per hour and displays the speed on an electronically-controlled, analog-style needle or a digital display. A rotation sensor mounted in the transmission delivers a series of electronic pulses whose frequency corresponds to the(average) rotationalspeed of the drive shaft, and therefore vehicle’s speed, assuming the wheels have full traction. Microcontroller based reliable and compact design, enables the speedometer with precise and accurate indication along with the digital display. The Odo value is non-resettable and the Trip value is resettable by the user. LED illumination provides less heat dissipation with best aesthetics and clear visibility in night condition. Speedometers are applicable in the field of off-road and commercial vehicles. Sketches accounts for the fitment dimensions in the vehicle mounting area.

Speedometer

Marine Meters

Hourly RPM Meters

Gauges

CABIN TILT SYSTEMS

Hydraulic tilt system used in ICV,M & HCV types of commercial vehicles to tilt the driver’s cabin and to enable easy access of under-cabin parts.System comprises of hydraulic pump hydraulic cylinder & latch.

  1. Hydraulic Pump Assembly
    Hand-operated reciprocating Piston type (Single Acting) with in-built Pressure Relief Valve.
  2. Hydraulic Latch Assembly
    A part of Hydraulic cabin tilt system that locks the cabin at rest position and ensures for proper locking of cabin with a feedback switch.
  1. Hydraulic Cylinder Assembly
    Double acting cylinder to provide required lift force
  2. Additional Features
    1. Hydraulic lost motion feature
    2. Integral stay
    3. Free fall feature for mechanical logs
    4. In built NRV (Non return value) for enhanced safety
    5. Mounting ends with spherical bearing and/or plastic bush

AUTOMATIC LUBRICATION SYSTEMS

An automatic greasing system driven by a micro-controller based Timer Unit to operate for a requisite ON & OFF intervals to grease Buses, Trucks, Tractors and other off-road vehicles.

Salient Features

  1. Automatic greasing at the right point at right time with right quantity
  2. Wide range of greasing with 8 to 68 points
  3. Enhances life of vehicle & vehicle parts
  4. Reduces operating and maintenance cost
  5. ROI within 15 Months

Application

  1. Mobile applications – Buses & Trucks
  2. Excavators
  3. Front & Back-Hoe loaders
  4. Tractors & other off-road vehicles
  5. Process Industries

  1. You're Here >
  2. Vehicle Segments
  3. Industrial

INDUSTRIAL

Tap on the product below for its information

GAUGES

Speedo meter converts the pulses received from a speed sensor to its corresponding speed indication in kilometers per hour and displays the speed on an electronically-controlled, analog-style needle or a digital display. A rotation sensor mounted in the transmission delivers a series of electronic pulses whose frequency corresponds to the(average) rotationalspeed of the drive shaft, and therefore vehicle’s speed, assuming the wheels have full traction. Microcontroller based reliable and compact design, enables the speedometer with precise and accurate indication along with the digital display. The Odo value is non-resettable and the Trip value is resettable by the user. LED illumination provides less heat dissipation with best aesthetics and clear visibility in night condition. Speedometers are applicable in the field of off-road and commercial vehicles. Sketches accounts for the fitment dimensions in the vehicle mounting area.

Speedometer

Marine Meters

Hourly RPM Meters

Gauges

PRESSURE RELIEF VALVES

Pressure Relief Valve is used to control or limit the pressure in a system. It releases oil to control the pressure.

Applications

Two wheelers, Commercial vehicles and Industrial application.

EGR VALVES

Exhaust gas recirculation valves recirculates a definite portion of the exhaust gas, back into the engine cylinder, in order to bring down the peak cylinder temperature and thereby reduce the production of NO, as per the BS VI emission norms.

Poppet Valve Product types:
  1. On/OFF Type (Normally closed)
  2. Proportional Type (Normally closed)
  3. Normally open Type

Butterfly valve product types:
  1. Normally open Type
  2. Normally closed Type

Applications

Three wheelers, Commercial vehicles and Industrial application.

FUEL FEED PUMP

The function of Fuel Feed pump is to lift the fuel from bottom tank to engine located on top.

Types

  • With shutoff valve
  • Without shutoff valve

Applications

Two wheelers, Three wheelers,Tractor and Industrial applications

OIL PUMPS

The function of Oil Pump is to supply pressurised oil to the engine for lubrication and to make the engine perform to the desired levels of emission norms. This also assists in cooling the engine.

Types

  1. Gerotor type
  2. Chain Driven / Crankshaft Driven
  3. Inbuilt Pressure Relief Valve (Optional)
  4. Variable Flow Oil Pump (VFOP)

Applications

Two wheelers, Three wheelers, quadricyles, Passenger cars, commercial vehicles, all terrain vehicles, Snow Mobiles and Industrial applications

PRESSURE SENSOR

PRESSURE SENSOR

  1. Diaphragm, plunger & bobbin winding
  2. Resistive output
  3. Pressure sensing range 0.1 bar to 10 bar
  4. Operating temperature range -30 °C to +100 °C
  5. Integrated pressure switch is optional
  6. Customized sensors as per requirements
  1. You're Here >
  2. Decision Information Systems & Sensors

Decision Information Systems & Sensors

Tap on the product below for its information

INSTRUMENT CLUSTERS

Pricol is a leading instrument cluster supplier for major OEMs in domestic and export market th a broad spectrum of Display Information Systems. We offer complete range of products suited for entry level requirements to advanced requirements of automotive OEMs. Our instrument clusters features visual information on the vehicle performance, environment, safety and mobility guidance with every interfacing technology needs. The displays are designed with combination of technologies suited to different segments and their aesthetic preferences providing products with best visual ergonomics.

Pricol Advantage

  1. Precision and reliable display devices with proven designs
  2. Customized displays optimized for cost and engineered for performance
  3. Collaborative engineering support
  4. Flexibility for attractive designs, styled to current trends
  5. Ergonomically structured for good viewing and operation
MECHANICAL CLUSTERS

MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Fuel Indication: Cross coil movement driven Pointer
  3. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRO MECHANICAL CLUSTER

ELECTRO MECHANICAL CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Cross coil movement driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Cross coil movement driven Pointer
  4. Warning Indications: Bulb/LED
Other Features
  1. Mechanical Odometer
  2. Mechanical Trip meter
ELECTRONIC CLUSTER

ELECTRONIC CLUSTER

  1. Speed Indication: Mechanical movement driven Pointer
  2. Tacho Indication: Stepper motor driven Pointer(PCB driven)
  3. Fuel/Temperature Indication: Stepper motor driven Pointer /LCD bar graph
  4. Warning Indications:LED
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
DIGITAL CLUSTER

DIGITAL CLUSTER

  1. Speed Indication: LCD
  2. Tacho Indication: LCD
  3. Fuel/Temperature Indication: LCD Bar Graph
  4. Warning Indications: LED/Graphics on LCD
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. LCD combined with numeric and dot matrix display
TFT CLUSTER

TFT CLUSTER

  1. Speed Indication: Virtual pointer/bar graph/numeric
  2. Tacho Indication: Virtual pointer/bar graph/numeric
  3. Fuel/Temperature Indication: Virtual pointer/bar graph/numeric
  4. Warning Indications: Graphics symbol/text
  5. Communication Protocol: CAN/LIN
Other Features
  1. Odometer on LCD
  2. Trip meter on LCD
  3. Clock(12hr/24hr)
  4. Gear position indicator
  5. Fuel computer
  6. Ambient temperature
  7. Electronic compass
  8. Tyre pressure monitoring system
  9. Diagnostic information/warnings
  10. Ambient light sensor
  11. Engine data
  12. Mobile info
  13. Caller details
  14. Turn by turn navigation
  15. Voice alerts
  16. Camera input
  17. Bluetooth module integration

FUEL LEVEL SENSORS

FLS HALL POSITION TYPE

FLS HALL POSITION TYPE

  1. Hall IC based technology
  2. Non-contact sensing
  3. Voltage output
  4. Float based
  5. Temperature range: 40° c +110° c
  6. Programmable Type
  7. Customized sensor, as per requirement
  8. Highly Reliable
REED SWITCH TYPE

REED SWITCH TYPE

  1. Non contact sensing with Reed Switch technology
  2. Tubular structure with small coverage area
  3. Level sensing resolution 10 mm
  4. Operating voltage range 5V to 36V
  5. Temperature range -40° C to +110 ° C
  6. Robust electrical design
  7. Insensitive to fuel contamination
  8. Effect of sloshing is negligible
  9. High product endurance (1 million cycles)
  10. Customized sensors as per requirements
THICK FILM RESISTOR TYPE

THICK FILM RESISTOR TYPE

  1. Float based, contact type sensing
  2. Thick Film Resistance technology
  3. Resistive output
  4. Temperature range -40 °C to +110 °C
  5. Customized sensors as per requirements

SPEED & POSITION SENSORS

POSITION SENSORS

POSITION SENSORS

  1. Hall IC based technology
  2. Non-contact sensing
  3. Voltage output
  4. Float based
  5. Temperature range: 40° c +110° c
  6. Programmable Type
  7. Customized sensor, as per requirement
  8. Highly Reliable
POSITION SWITCHES

POSITION SWITCHESNON CONTACT TYPE

  1. Hall technology
  2. Operating & Storage temp. range -40 °C to +150 °C
  3. Compact dimensions
  4. Operating voltage range 5 V to 32 V
  5. Sensing gap 0.5 mm to 7 mm
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements
SPEED SENSORS

SPEED SENSORS

  1. Wheel Speed & Gear Box axle Speed Sensing
  2. Hall effect technology
  3. Compact dimensions
  4. Operates with 0.5mm to 2mm sensing gap
  5. Operating voltage range 5V to 32V
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

PRESSURE SENSORS & SWITCHES

PRESSURE SENSOR

  1. Diaphragm, plunger & bobbin winding
  2. Resistive output
  3. Pressure sensing range 0.1 bar to 10 bar
  4. Operating temperature range -30 °C to +100 °C
  5. Integrated pressure switch is optional
  6. Customized sensors as per requirements

PRESSURE SWITCH

  1. Diaphragm technology
  2. Normally open type switch
  3. Pressure switching point range 0.4 bar to 5.4 bar
  4. Operating temperature range -40 °C to +125 °C
  5. Customized switch points as per requirements
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

TEMPERATURE SENSORS & SWITCHES

PRESSURE SENSOR

  1. Diaphragm, plunger & bobbin winding
  2. Resistive output
  3. Pressure sensing range 0.1 bar to 10 bar
  4. Operating temperature range -30 °C to +100 °C
  5. Integrated pressure switch is optional
  6. Customized sensors as per requirements

PRESSURE SWITCH

  1. Diaphragm technology
  2. Normally open type switch
  3. Pressure switching point range 0.4 bar to 5.4 bar
  4. Operating temperature range -40 °C to +125 °C
  5. Customized switch points as per requirements
  6. Low current consumption 6 mA to 15 mA
  7. Robust electrical protections
  8. IP6k9k protection
  9. High product endurance (1 million cycles)
  10. Customization as per specific requirements

OXYGEN SENSOR

Exclusive licensing Partnership with Kerdea Technologies

Benefits

  1. Improved emissions and fuel economy
  2. Reduced catalytic converter size
  3. Simple construction with faster response
  4. Better A/F control
  5. Cost effective design
    1. Resistive based technology incorporating modern MEMS processing techniques
    2. Simplified construction eliminating complex multilayer elements and reference cavities
    3. A sensing element requiring significantly smaller amounts of ceramic and platinum

BODY CONTROL MODULE

BCM provide safety, diagnostics & fault detection, power management and comfort. BCM communicates to other ECU’s (Through CAN J1939) in vehicle to bring in intelligence to electrical loads, which will ensure safety, minimize power consumption and endurance to loads.

Pricol can design BCM as per OEM specific requirements and adapt to vehicle specific electrical architecture in the vehicle.

  1. You're Here >
  2. Pumps & Allied Products

Pumps & Allied Products

Tap on the product below for its information

OIL PUMPS

The function of Oil Pump is to supply pressurised oil to the engine for lubrication and to make the engine perform to the desired levels of emission norms. This also assists in cooling the engine.

Types

  1. Gerotor type
  2. Chain Driven / Crankshaft Driven
  3. Inbuilt Pressure Relief Valve (Optional)
  4. Variable Flow Oil Pump (VFOP)

Applications

Two wheelers, Three wheelers, quadricyles, Passenger cars, commercial vehicles, all terrain vehicles, Snow Mobiles and Industrial applications

WATER PUMPS

Majorly, Water Pumps are centrifugal type pumps used to circulate coolant to cool the engine. The key parts of water pump are impeller, mechanical seal and integral shaft bearing.

Applications

Two wheelers, quadricycles, passenger cars, commercial vehicles ,tractors, off road equipment and industrial applications

ELECTRIC WATER PUMPS

Electric water pump provides smart cooling solutions for battery ,motor and controller of electric and hybrid vehicles. For the existing engine it acts as a secondary cooling, exhaust gas recirculation & Turbo charge cooling. It has features of CAN ,LIN controlled with BLDC motor technology for variable flow requirements and support to lower engine loads.

Applications

Two wheelers, Three wheelers, Passenger cars, commercial vehicles, Electric vehicles

Exclusive licensing Partnership with Kerdea Technologies

FUEL PUMP MODULE

To meet BS VI / Euro VI emission norms, it is mandatory to use with Electronic Fuel Injection (EFI) system.

EFI system requires Fuel pump module to inject metered amount of fuel into the cylinder for combustion through an injector. This rate of fuel injection is controlled by the ECU

Applications

Two wheelers

CHAIN TENSIONERS

A Cam Chain tensioner is a mechanical device that applies load that ranges from 4N to 30N to maintain cam chain tension.

  1. Rack: Movement of Plunger in steps
  2. Screw & Torsion Spring: Movement of Plunger is continuous
  3. Screw & Flat Spiral Spring: Compact and movement of Plunger is continuous

Applications

Two wheelers

PRESSURE RELIEF VALVES

Pressure Relief Valve is used to control or limit the pressure in a system. It releases oil to control the pressure.

Applications

Two wheelers, Commercial vehicles and Industrial application.

EGR VALVES

Exhaust gas recirculation valves recirculates a definite portion of the exhaust gas, back into the engine cylinder, in order to bring down the peak cylinder temperature and thereby reduce the production of NO, as per the BS VI emission norms.

Poppet Valve Product types:
  1. On/OFF Type (Normally closed)
  2. Proportional Type (Normally closed)
  3. Normally open Type

Butterfly valve product types:
  1. Normally open Type
  2. Normally closed Type

Applications

Three wheelers, Commercial vehicles and Industrial application.

CABIN TILT SYSTEMS

Hydraulic tilt system used in ICV,M & HCV types of commercial vehicles to tilt the driver’s cabin and to enable easy access of under-cabin parts.System comprises of hydraulic pump hydraulic cylinder & latch.

  1. Hydraulic Pump Assembly
    Hand-operated reciprocating Piston type (Single Acting) with in-built Pressure Relief Valve.
  2. Hydraulic Latch Assembly
    A part of Hydraulic cabin tilt system that locks the cabin at rest position and ensures for proper locking of cabin with a feedback switch.
  1. Hydraulic Cylinder Assembly
    Double acting cylinder to provide required lift force
  2. Additional Features
    1. Hydraulic lost motion feature
    2. Integral stay
    3. Free fall feature for mechanical logs
    4. In built NRV (Non return value) for enhanced safety
    5. Mounting ends with spherical bearing and/or plastic bush
  1. You're Here >
  2. Product Verticals
  3. Telematics

Telematics

Tap on the product below for its information

TELEMATICS COMPETENCY

Pricol offers best-in-class, OEM Quality telematics solutions in various segments of vehicle telematics and industrial IOT solutions.

Our solutions to OEMs have been recognized for solving critical business challenges through our optimized design, Quality, cost and services. Our after-market solutions have been unique with high value propositions at competitive costs.

OBD II

Pricol's OBD II telematics product is self-installation device, measuring just 69 X 52 X 23 (in mm) plugs into OBD II port send out all installation specific details to platform. It has self-learning 3D axis accelerometer algorithms understands the orientation to give precise driver behavior data irrespective of orientation. Device can read upto 73 OBD II DTC's which will help in remote diagnostics. Edge analytics on driver behavior patterns, Mere accident alert, ODO meter matched with vehicle ODO, Alert on device removal, all parameters are configurable through OTA commands are some of the features of pricol’s OBD II telematics Device.

Applications

  1. Insurance
  2. Pay as you drive, Pay how you drive, UBI, Accident Claims, Mere crash response.
  3. Auto Finance
  4. Safety of vehicle, Mere crash alerts, Embedded Geo-Fence (Circular), Device removal alert.
  5. Rental cars
  6. Efficient fleet management, Remote vehicle diagnostics.
  7. Leased vehicles
  8. Safety of vehicles, Accurate vehicle ODO matching, Improve compliance

Technical Specification

  1. OBD Interface: CAN port and K-Line
    1. CAN compliant: ISO 15765-4, ISO 15765-2.
    2. K-LINE: ISO 9142-2 ,ISO 14230-1/2, ISO 14230-2, ISO 14230-4, J1939
  2. Vehicle DTC parameters (Up to 73 parameters)
  3. Vehicle ODO matching
  4. Driver behavior model build into device
    1. High acceleration
    2. Harsh breaking
    3. Over speed
    4. Cornering
    5. Mere Crash detection– 2g and 4g
    6. Idle time (Short and Long)

INTELLIGENT TRANSPORTATION SYSTEMS

Meets AIS 140 regulation and has several additional features which make OEMs to integrate across platforms. Additional interfaces will enable to integrate 3rd part accessories like RF ID readers, Fuel level sensors, etc. Additional IP addressing will enable vehicle data available for OEM's for their own applications. Platform can be easily upgraded to 4G CAT M1

  1. Applications
  2. Fleet management, Remote diagnostics
  1. Technical Specification
    1. Platform which can be upgraded to 4G (CAT M1)
    2. Operating Temperature : -40ºC to +85ºC.
    3. Operating Voltage : 9V to 32V
    4. Protection : IP-69
    5. Size: 120 x 100 x 35 mm
    6. 2200mAH Internal Battery (Max. 8 Hrs.)
    7. 2 CAN, 4 Digital Inputs (Configurable for Active high / low),
    8. 2 Analog Inputs, 1 Frequency Input, 2 Output
    9. Embedded Accelerometer and Gyroscope
    10. Three IP addressing
    11. Bluetooth 4.0
    12. RS485 | RS232 | 2nd CAN for any third party product integration

OFF-ROAD EQUIPMENT SOLUTIONS

Pricol's telematics solutions for Construction, Agriculture and Mining have multi connectivity (GSN, WiFi, Bluetooth) large number of IO's and scalable to new technology (4G, WiFi Enterprise, etc). Designed for robustness like high vibration level,IP69 Enclosure, etc. Solutions can help compute hour meter, fuel level monitoring, monitor critical accessories. With dual CAN capability, these products enable remote diagnostics to monitor health of these critical assets.

Application

Construction and Agriculture

  1. Track engine hours, get mileage report alerts, and monitor fuel consumption
  2. Help prevent unauthorized use and theft
  3. Receive sensor alerts and fault codes
  4. Create maintenance logs
  5. Plan preventative repairs
  6. Avoid breakdowns and reduce equipment downtime
  7. Track heavy equipment with real-time position location reports
  8. Use geofences and enhance operator safety
  9. Optimize billing practices
  10. Increase return on investment
  11. Lower equipment lifecycle cost with real-time data

Mining

  1. Large data logging
  2. Real time safety zones
  3. Vehicle to Vehicle communication using WiFi

TEchnical Specification

  1. Global Certified Modules – Certified to use with 127
  2. Telecom operators world wide
  3. 2G | 3G | 4G upgradable
  4. GNSS: GPS | GLONASS | GALILEO
  5. WiFi | Bluetooth 4.0
  6. Dual CAN J1939 | High side output
  7. Highly Configurable IO's
  8. 4 Active High | 4 Active Low | 3 Configurable
  9. Digital Inputs
  10. 2 Frequency Inputs | 4 Analog Inputs
  11. 1 Low Side Output
  1. You're Here >
  2. Product Verticals
  3. Park Assist Systems

Park Assist Systems

Tap on the product below for its information

SENSORS - PASSENGER VEHICLES

  1. Compliance to mandatory regulation of Automotive Industry Standard AIS-145/DF1 (0-60-100cm) or higher
  2. 4 / 2 sensors - Rear & Front application based on vehicle width & mounting conditions
    3. >
  3. Self diagnostic check on start & Low response time of 0.2 secs
  4. Buzzer with 70 to 90db with or without LED, Left / Right zone indication
  5. Easy sensor installation into Plastics or Metal bumpers
  6. Robust electrical design integrated with protection circuits
  7. 7 segment LED for actual distance to obstacle etc.
  8. Customization available with LIN ECU outputs, integration to Instrument clusters and other vehicle modules
  9. Learning capability to ignore vehicle mounted parts
  10. Auto mute function for vehicle towing

SENSORS - COMMERCIAL VEHICLES

  1. Compliance to mandatory regulation of Automotive Industry Standard AIS-145/DF1 (0-70-180cm) or higher
  2. 4 sensors with rubber surface mounts / lock nuts for vehicle mounting
  3. Self diagnostic check on start & Low response time of 0.4 secs
  4. Buzzer with 70 to 90db with or without LED, Left / Right zone indication
  5. Robust electrical design integrated with protection circuits
  6. All external components are IP68 water proof rated
  7. Optional 7 segment LED for actual distance to obstacle etc
  8. Customization available with LIN outputs, integration to Instrument clusters and other vehicle modules
  9. Learning capability to ignore vehicle mounted parts
  10. Auto mute function for vehicle towing

ON SCREEN DISPLAY WITH GRAPHICAL OVERLAY

PASSENGER & COMMERCIAL VEHICLES

  1. Compliance to mandatory regulation of Automotive Industry Standard AIS-145/DF1
  2. Monitoring range of 0-60-100cm for passenger vehicles and 0-70-100cm for commercial vehicles (or) Higher
  3. Self diagnostic check on start & Low response time of 0.5 secs
  4. High resolution switchable overlay display of sensor systems detection patterns
  5. Designed to accept any NTSC camera signals and overlay sensor data in the range of advanced interfaces
  6. Robust electrical design integrated with protection circuits
  7. All external components are IP68 water proof rated
  8. Customization available with LIN outputs, integration to Instrument clusters and other vehicle modules

CAMERAS - PASSENGER VEHICLES

  1. Compact designs with waterproof IP68 rated
  2. 160 degree high quality lens and High resolution digital imager
  3. Very good low light capability for Rear & Front applications
  4. Adjustable mounting systems & fits any vehicles
  5. Available for bumper mounting, Name plates, Back visor etc

CAMERAS - COMMERCIAL VEHICLES

  1. Heavy duty metal housing with adjustable sun shield
  2. Sony Super HAD CCD image sensor
  3. Infrared Night vision capable with photo sensing automatic control
  4. Screw lock water proof connectors
  5. Plug ’n’ Play with any monitors

MULTI-VIEW CAMERAS

PASSENGER & COMMERCIAL VEHICLES

  1. Front & Rear installation
  2. 3 viewing angles with dash mounted control and on screen guideline options
  3. Heavy duty metal housing and IP68 water proof rated
  4. Megapixel imager for Crystal clear images
  5. Auto calibration and adjusts to mounting heigh
    6. t
  6. Designed for low light conditions

WIRELESS CAMERA SYSTEMS

  1. Wireless range over 200m and Zero Static
  2. Digital High resolution LCD monitor
  3. Heavy duty metal housing with adjustable sun shield
  4. Sony Super HAD CCD image sensor
  5. Infrared Night vision capable with photo sensing automatic control
  6. All external components are IP68 water proof rated

DISPLAYS

  1. 4” LCD Mirror display with 3.6” High resolution LCD screen / Standard Display with 4.0” High resolution LCD screen
  2. Provided with standard arm or swappable arm
  3. Automatic reverse activation
  4. Full contrast / brightness / color adjustments

TECHNOLOGY ROADMAP

  1. You're Here >
  2. Product Verticals
  3. Wiping Systems

Wiping Systems

Tap on the product below for its information

FRONT WIPER MOTORS

Front Wiper Motors – 12V & 24 V

  1. Motor Torque Range – 18 Nm to 52 Nm
  2. Wipe Angle Range – 70 to 110
  3. Life – Minimum 1 million cycles
  4. Over Load Protection
  5. High Corrosion Resistance
  6. EMI / EMC protection
  7. Water Tightness IP6K7

Features

  1. Modular Systems
  2. Compact Design
  3. Integrated Connector
  4. LHD and RHD Versions
  5. IP6K7
  6. Integrated EMI/EMC Filter
  7. In-house testing and validation
  8. Catering to Passenger Vehicles, Light Commercial
  9. Vehicles and Commercial Vehicles segments

Wipe Pattern

  1. Tandem
  2. Pantograph
  3. Master Sleeve
  4. Single Arm

Types of Wiping Linkages

  1. Module Type
  2. Separate

REAR WIPER MOTORS

Features

  1. Motors Torque Range : 5 Mn
  2. Angle of Wipe : 90 to 180
  3. Life : Minimum 0.5 million cycles
  4. EMI/EMC protection
  5. 35 swings per minute

COMPACT FRONT WIPER MOTORS

Features

  1. Stall torque 32Nm
  2. Compact size
  3. Integrated connector
  4. LHD and RHD versions
  5. Weight
    1. 990g (motor)
    2. 2198g (motor+linkage)

HEAVY DUTY WIPERS

Features

  1. Modular system
  2. 12V or 24V
  3. Stall torque 25Nm
  4. IP 54
  5. Integrated thermal cut out
  6. Integrated EMI filter
  7. Wiping angle 65°-105°
  8. Durability 20,00,000 cycles

  9. Options

    1. Two output shafts

NEW CONCEPT REAR WIPER MOTORS

Features

  1. Stall torque 5Nm
  2. Stator diameter 42x31
  3. Watertight connector
  4. Watertight electronics compartment
  5. Weight 770g

  1. You're Here >
  2. Product Verticals
  3. Metal Forming Division

Metal Forming Division

Tap on the product below for its information

STINTERED COMPONENTS

The sintered components plant was set-up in 2002 to support the company’s internal requirements and has now grown to supply Powder Metal Parts to OEMs and Tier 2 suppliers. The plant also caters to the need of Automotive and Non-Automotive suppliers, in and outside India. The plant also manufactures extremely complex ferrous parts, geometry and metallurgy (Ferrous and Non Ferrous).

The components are produced with customized mixes to the required chemistry with dust-free stainless steel blending equipment at the computer aided mixing stations. All mix compositions conforms to either MPIF standards 35 or Sinterstahl (DIN specifications). Cross functional teams of engineers ensure all the requirements of the quality systems are followed in APQP and PPAP processes.

Mix compositions of Powder Metal Parts include

  1. Iron and carbon steel
  2. Iron copper and copper steel
  3. Pre-alloyed steel
  4. Sinter hardened steel
  5. Hybrid low alloy steel
  6. Copper in ltrated steel
  7. Stainless steel

Capabilities

  1. Single level compaction press of 400 tons, Multilevel compaction presses up to 250 tons
  2. Multilevel, programmable and CNC controlled automatic presses with 60 and 140 ton pressing capacity
  3. State-of-the-art and custom designed 450mm mesh belt sintering furnace, with SCADA
  4. In-house tool making and heat treatment (quench and temper, case harden, carbon nitrating, nitrating)and steam treatment
  5. A highly trained work force
  6. A talented pool of engineers to design tools
  7. Well equipped laboratories, with capability for rapid elemental analysis and measuring equipment
  8. including gear testers, CMM
  9. Post processing machining capability
  10. Capability to select appropriate materials to meet requirements
  11. Warm compaction attachment to achieve density >7.0 gm / cc

Achievements

The Powder Metallurgy Association of India(PMAI) adjudged our products as the “Best parts of 2016”, for following reasons

  1. The Parts are made up of two different materials which is heat-treated, sintered separately and projection welded together.
  2. The inner diameter is machined and the bi-metal bush interference is fitted
  3. The parts substituted imported parts and saved Forex

HIGH PRESSURE DIE CASTING PARTS

Started in early 2017, the Pressure Die Casting product line includes High Pressure Aluminium Die casted parts with a capability of producing intricate parts involving single core, double core and angular core.


Capabilities

Started in early 2017, the Pressure Die Casting product line includes High Pressure Aluminium Die casted parts with a capability of producing intricate parts involving single core, double core and angular core.

  1. Capability of producing most intricate pump parts which involve single core, double core and angular core.
  2. Capability of producing part with all grades of Aluminium.
  3. Currently producing parts ranging from 0.017 Kgs to Upto 0.5 Kgs which will soon increase to 1.75 Kgs to increase
  4. Online Trimming and Inspection capabilities.
  5. Design the conversion of LPDC / GDC parts into HPDC parts thereby improving the quality and higher
  6. production volumes.
  7. State of the art Tool Room with in house Design Capabilities and Tool Manufacturing.
  8. In house Machining Facility ensuring quality. (VMCs from Makino and Brother – 45 Machines)
  9. Talented engineers and technical team inclined to meet Customer’s requirements
    10. .
  10. In-house Metallurgical and Metrological testing facility
  11. All products are developed as per recognized National / International Standards or as per Customer
  12. specific requirements.

    © 2024 Pricol Limited
